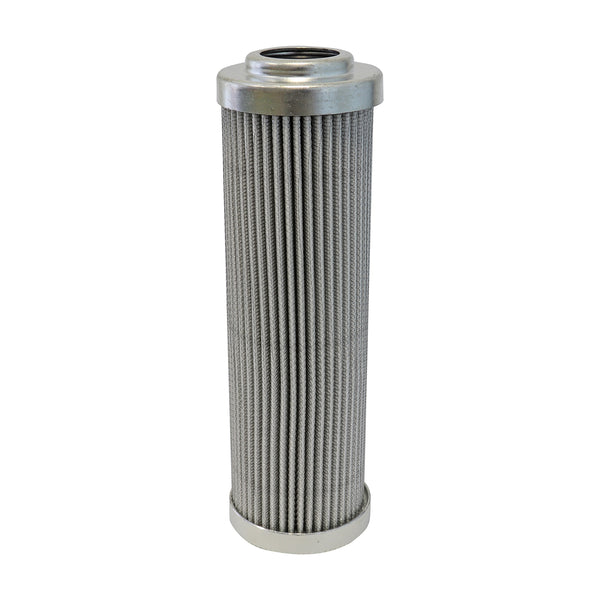

Stauff SE-030-H-03-B/4 Replaces the Stauff SE030H03B4
Stauff SE-030-H-03-B/4 Replaces the Stauff SE030H03B4
SE-030-H-03-B/4
Stauff
Stauff SE030H03B4
Stauff
Stauff SE030H03B4
Description
Replacement Filter Element for Pressure Filters Micron Rating: 3 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 47 Inner Diameter (mm): 22,2 Length (mm): 153 Sealing: NBR, β ratio >200
Brand:
Stauff
Sort by:
Ships in 4 Days
€99,95
Price€99,95/each
Shipped Thursday, 10 April
Order within 4hrs 33mins
Order within 4hrs 33mins
| UNITS | PER UNIT |
|---|---|
| 2 - 4 | €97,96 |
| 5 - 9 | €95,96 |
| 10+ | €93,96 |
0.37 kg
8421.99.90
Germany
Description
Replacement Filter Element for Pressure Filters Micron Rating: 3 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 47 Inner Diameter (mm): 22,2 Length (mm): 153 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Efficiency 1 | 3µ @ β200 |
| Efficiency 2 | 5µ @ β1000 |
| Outer Diameter | 47.0 mm |
| Inner Diameter | 22.1 mm |
| Length | 153.0 mm |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 210 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
